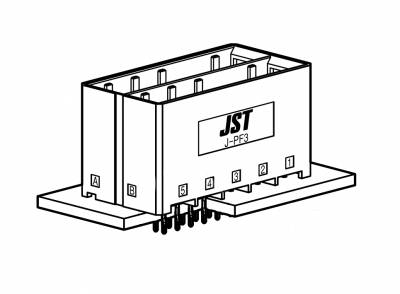

JFA Connector (J300 Series (Press Fit)) 8mm Pitch Press Fit Connector

High reliability press fit contact is adopted. It is possible to mount without solder.

Four kinds of keying enables to mount lots of connector on PC board. Pitch layout of connector provides designing the PC board pattern easily.

It plays the standardization by using the J300 series receptacle contact with abundant functions such as wire-to-wire, wire-to-board and common type.

01 - Connection Type:	Factory Automation Connectors
02 - Product Type:	Wire to Board Crimp style Connectors
03 - Pitch / Style:	8.00mm
04 - Current rating:	15A AC,DC
05 - Voltage rating:	600V AC,DC
07 - Available number of circuits:	10
11 - Feature:	Secure locking device
13 - PCB Mount Style:	Through-hole Technology (THT)

Tool Types

Click on a Tool Type/Category to view related tools to this series.

Can't find a Tool?

If you're having trouble finding the right tool, please contact our sales team.

Applicators (Industry Standard)

Please select a tool for more information.

	CDS SF3F/M41-20/CMKS-L Industry Standard (Semi Automatic) Applicator for SF3F-41GF-P2.0, SF3M-41GF-M2.0N, SF3F-41G1-P2.0 and SF3M-41G1-M2.0N
	CDS SF3F002-20/CMKS-L Industry Standard (Semi Automatic) Applicator for SF3F-002GF-P2.0, SF3F-002G1-P2.0
	CDS SF3F/M01-20/CMKS-L Industry Standard (Semi Automatic) Applicator for SF3F-01GF-P2.0, SF3M-01GF-M2.0N, SF3F-01G1-P2.0 and SF3M-01G1-M2.0N
	CDS SF3F/M71-20/CMKS-L Industry Standard (Semi Automatic) Applicator for SF3F-71GF-P2.0

Applicators (JST Standard)

Please select a tool for more information.

	DS SF3F/M41-20/MKS-L JST Standard (Semi Automatic) Applicator for SF3F-41GF-P2.0, SF3M-41GF-M2.0N, SF3F-41G1-P2.0 and SF3M-41G1-M2.0N
	DS SF3F002-20/MKS-L JST Standard (Semi Automatic) Applicator for SF3F-002GF-P2.0, SF3F-002G1-P2.0
	DS SF3F/M71-20/MKS-L JST Standard (Semi Automatic) Applicator for SF3F-71GF-P2.0
	DS SF3F/M01-20/MKS-L JST Standard (Semi Automatic) Applicator for SF3F-01GF-P2.0, SF3M-01GF-M2.0N, SF3F01G1-P2.0 and SF3M01G1-M2.0N
