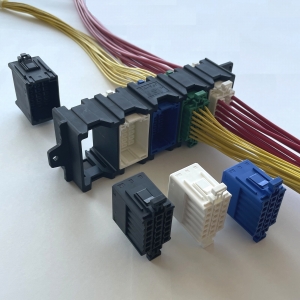

JFA-VL is a highly integrated connector system for electrical circuitry, It is designed for signal and power supply applications for use in factory automation, heavy electric machinery, railway and general industrial equipment.

·         Featuring a wide range of wire gauges (AWG #28 to AWG #12)

·         Keying available to prevent incorrect mating

·         Panel lock type is also available in the JFA-VL connector line up. It can be attached to the panel by itself.

·         Frame housing style for modular system (1 frame, max. 5 modules)

·         Pin counts available

J300 Series: 90 pins (18 pins x 5 modules)

J400 Series: 65 pins (13 pins x 5 modules)

VL Series: 50 pins (10 pins x 5 modules)

·         RoHS Compliant
