LEKU CONNECTOR Single-Circuit Board-to-Board Connector
Enquire about this product
  • Features
  • Specification
  • Downloads
  • Samples

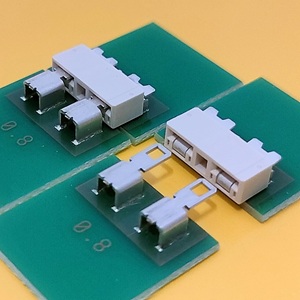

The LEKU connector is the newest addition to JST's ever increasing LED connector range.

With a height of 3.3mm, this surface mount connector is low profile, therefore providing a space saving connection for LED lighting applications.

This single circuit board-to-board connector has a spring contact system, which enables a secure locking system and high retention force between the plug and receptacle contact.

The connector can easily be withdrawn when pushing down the locking lever of the receptacle contact.







  • Metal Lock (Heavy-duty metal lock)
The heavy-duty metal lock exhibits exceptional durability against prying and irregular external forces, while also ensuring a consistent and secure mating sensation for satisfactory long-term use.



  • Misalignment-absorption mechanism
The LEKU connector accommodates misalignment of up to 0.5mm in both the mating and pitch directions, and accommodates thermal expansion as well as contraction of the PCB.



  • Halogen-free
Resin material used is halogen-free



  • RoHS compliant

01 - Connection Type: Printed Circuit Board Connectors
02 - Product Type: Board to Board Connectors
03 - Pitch / Style: Single-Circuit
04 - Current rating: 3A AC,DC
05 - Voltage rating: 300V AC,DC
06 - Temperature range: -55 to +105 Degrees Celsius
13 - PCB Mount Style: Surface Mount Technology (SMT)

Full Technical Drawings

If you require full technical drawings or any other in-depth information about this product series, please contact us using the link below.

Contact Us

Additional Information

This product series has some additional information related to it that you can download from the list below.

1) Catalogue Page
