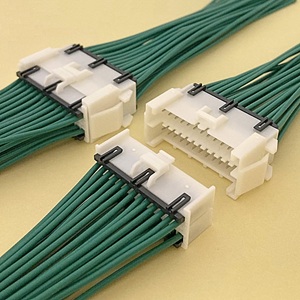

The JST XM Connector (Glow Wire Type) is a 2.5mm pitch Wire-to-Wire connector that has an operational current rating of 3Amps. This is manufactured using Thermoplastic resin material, which allows it to meet the Glow Wire requirements indicated within; IEC 60335-1 (Household and similar electrical appliances – Safety Standard).

Initially developed for domestic appliance applications, this connector is panel mountable and features an optional Secondary Retainer or TPA (Terminal Position Assurance) that ensures that the crimped contact has been inserted correctly into the housing.

The XM Connector is available in 16, 18 & 26 circuit variations, with a current rating of 3Amps, 250V AC/DC Voltage and operating temperature range of -25^OC to +105^OC

Applications

• Domestic Appliance
• Automotive
• Medical
• Vending
• Air Conditioning

# These are a representation of some of the applications and uses of this product, and is by no means definitive.

Connector variation

• The connector is available in two other variations;

• XM (Standard Type) Connector (Wire to Wire Type)

• XM (Standard Type) Connector (High Box Type)

Secondary Retainer – Terminal Position Assurance (TPA)

• The Secondary Retainer or TPA feature ensures that the crimped contact has been inserted fully into the housing. It's a feature that aids the production/assembly process where it is not always easy to check that the crimped contact has been inserted correctly into the housing.

Secure locking device

• The housing has a locking feature that prevents accidental disconnection due to restricted wire routing or high environmental vibration.

Panel lock construction

• Our unique space-saving panel lock is designed to prevent tangling with wires or breaking in cold or dry weather.

• Available in 16, 18 & 26 circuit versions. The dual row design enable high circuit density and compact wire to wire connections.

 Application Equipment

• Hand, Semi-Automatic and Fully Automatic assembly devices are available. See Tooling tab for further details.

 Operational temperature range

• -25^OC to +105^OC

Standards

• IEC 60335-1 (Household and similar electrical appliances – Safety Standard).

RoHS Compliant
